1、定量高低压组合泵50T+SL,150T+SL采用大流量、低噪音定量叶片泵及小流量齿轮泵组合(或高压叶片泵)，构成高低压泵，单一电机装配成高低压回路系统，节省功率。定量高低压组合泵50T+SL,150T+SL有如下型号：50T-07+SL,50T-12+SL,50T-14+SL,50T-17+SL,50T-20+SL,50T-23+SL,50T-26+SL,50T-30+SL,50T-36+SL,50T-39+SL,150T-48+SL,150T-61+SL,150T-75+SL,150T-94+SL,150T-116+SL等。 |
| 50T | -12 | -F | -R | +SL |
| 系列号码 | 排量 | 安装型式 | 旋转方向(从轴端看) | 高压小流量泵 |
| 定量叶片泵 | 参照规格表 | F：法兰式 L：脚座式 |
R：顺时针方向 L：逆时针方向 |
依厂牌而定 |
| 型 号 | 吐出容量cc/rev | 最高使用 压力Mpa |
回转速度r.p.m | 重量(kg) | |||||
| 回转速度r.p.m | |||||||||
| 1000 | 1200 | 1500 | 1800 | 最高 | 最低 | 脚座型 | 法兰型 | ||
| 50T-07+SL | 7.0+SL | 8.2+SL | 10.3+SL | 12.5+SL | 高压：21 低压：7 |
1800 | 900 | 13 | 11 |
| 50T-12+SL | 12.2+SL | 14.3+SL | 18.2+SL | 21.5+SL | |||||
| 50T-14+SL | 14.5+SL | 17.3+SL | 21.5+SL | 26.0+SL | |||||
| 50T-17+SL | 17.1+SL | 20.2+SL | 25.5+SL | 31.5+SL | |||||
| 50T-20+SL | 20.0+SL | 23.8+SL | 29.8+SL | 36.1+SL | |||||
| 50T-23+SL | 23.1+SL | 27.4+SL | 34.3+SL | 41.3+SL | |||||
| 50T-26L+SL | 26.2+SL | 31.2+SL | 39.2+SL | 41.5+SL | |||||
| 50T-30+SL | 30.2+SL | 36.2+SL | 45.2+SL | 54.1+SL | |||||
| 50T-36+SL | 36.2+SL | 41.5+SL | 54.5+SL | 64.2+SL | |||||
| 50T-39+SL | 39.0+SL | 45.6+SL | 58.3+SL | - | |||||
| 150T-48+SL | 48.2+SL | 58.0+SL | 72.6+SL | 86.8+SL | 1500 | 850 | 28 | 27 | |
| 150T-61+SL | 61.4+SL | 73.8+SL | 92.0+SL | 110.6+SL | |||||
| 150T-75+SL | 75.0+SL | 90.5+SL | 113.1+SL | 135.6+SL | |||||
| 150T-94+SL | 94.0+SL | 113.1+SL | 141.3+SL | - | |||||
| 150T-116+SL | 116.2+SL | 139.5+SL | 174.2+SL | - | |||||
备注：1.50T-07+SL的"SL"为高压小流量泵之规格(排量)在组装尺寸许可下，可搭配任何厂牌。2.小型高压泵输出压力依搭配厂牌有所不同。3.重量仅为低压大流量叶片泵重量。4.订构时齿轮泵或高压叶片泵价格另计。

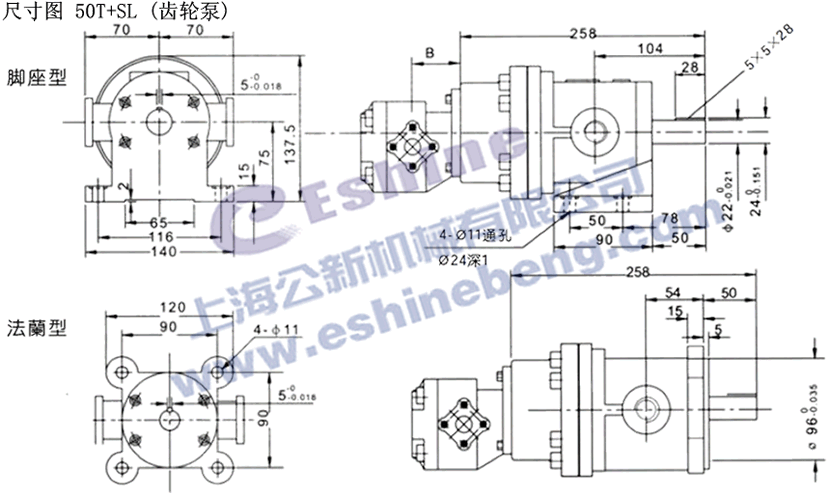

定量高低压组合泵50T+SL(齿轮泵)尺寸图下载 定量高低压组合泵150T+SL(齿轮泵)尺寸图下载

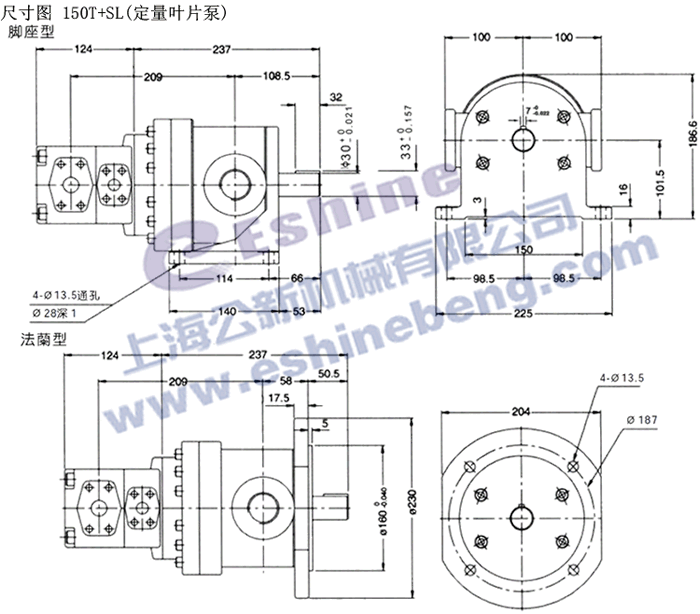

定量高低压组合泵150T+SL(定量叶片泵)尺寸图下载
