1、高压齿轮泵3GB6P2,3GB7P2为常用高压液压系统而设计。 2、高压齿轮泵3GB6P2,3GB7P2泵体材质采用高级纯铝合金铸造而成。 3、高压齿轮泵3GB6P2,3GB7P2前后盖更采用FC250铸铁铸造而成。合金钢整体精研之齿轮，耐磨耗的8字型培林座，及全VITON密封件，更能维持高效率运转。 4、高压齿轮泵3GB6P2,3GB7P2高效能、低噪音适用高频率之液压机械，可广泛应用于行走机械、工程机械、农业机械等液压系统。 高压齿轮泵3GB6P2,3GB7P2有如下型号：3GB6P223,3GB6P225,3GB6P228,3GB6P233,3GB6P238,3GB6P244,3GB6P252,3GB6P260,3GB6P270,3GB6P280,3GB6P290,3GB7P223,3GB7P225,3GB7P228,3GB7P233,3GB7P238,3GB7P244,3GB7P252,3GB7P260,3GB7P270,3GB7P280,3GB7P290。 |
| 3 | G | B | 6/7 | P2 | 52 | R |
| 系列 | 型式/功能 | 前盖法兰规格 | 轴伸规格 | 出入油口规格 | 型号 | 旋向(R,L) |
备注：R表示右转，面向轴伸顺时针;L表示左转，面向轴伸逆时针。2、假设您所要的前泵排量是52.0ml/rev，旋向是右旋，正确的订购型号：3GB6P252R。
| 型 号 | 公称排量 ml/r |
使用压力 Mpa | 最高转数 RPM |

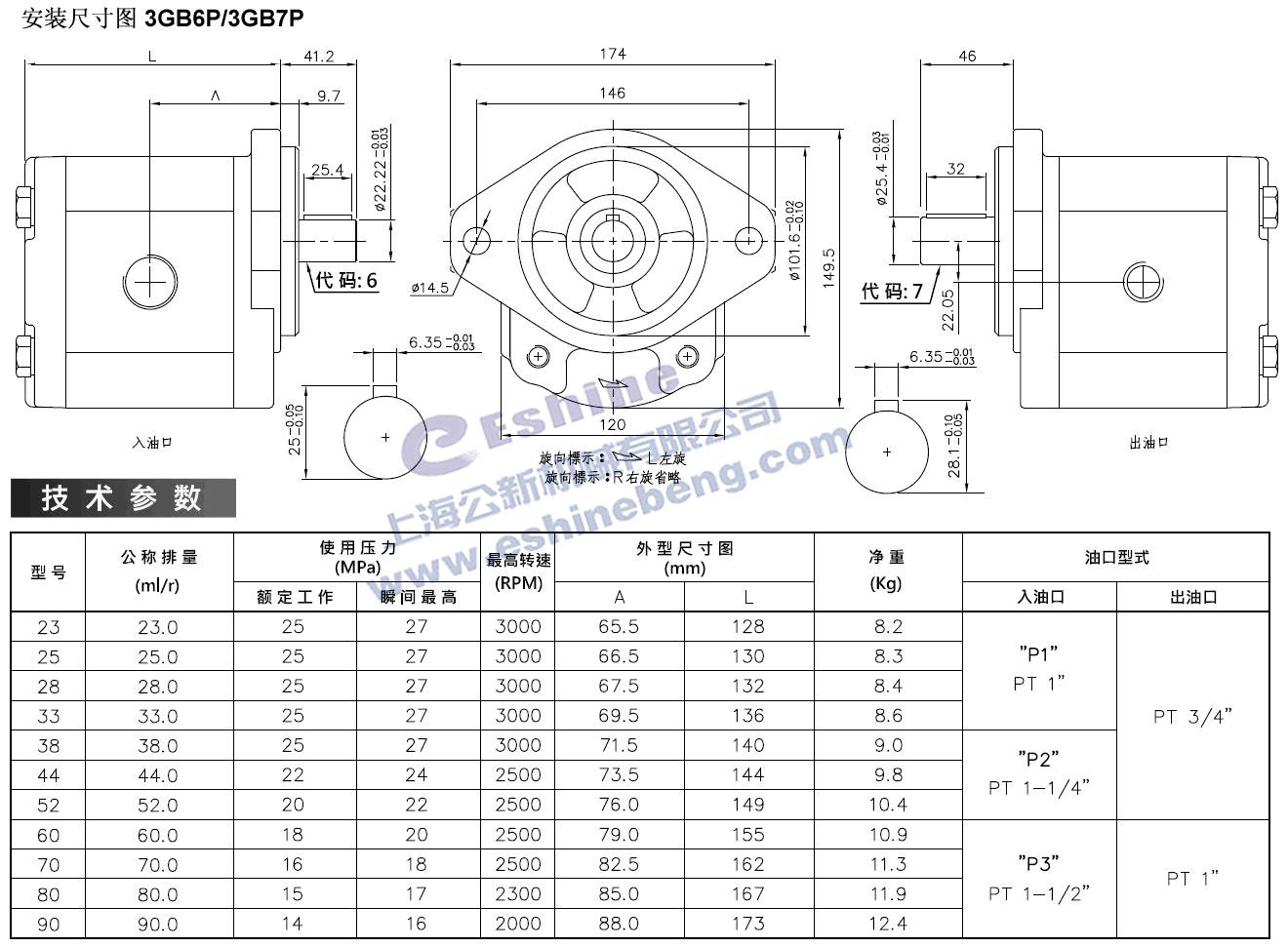

外型尺寸图 mm | 净重 kg |
油口型式 | |||
| 额定工作 | 瞬间最高 | A | L | 入油口 | 出油口 | ||||
| 3GB6P223 | 23.0 | 25 | 27 | 3000 | 65.5 | 128 | 8.2 | "P1" PT 1" |
PT 3/4" |
| 3GB6P225 | 25.0 | 66.5 | 130 | 8.3 | |||||
| 3GB6P228 | 28.0 | 67.5 | 132 | 8.4 | |||||
| 3GB6P233 | 33.0 | 69.5 | 136 | 8.6 | |||||
| 3GB6P238 | 38.0 | 71.5 | 140 | 9.0 | "P2" PT 1-1/4" |
||||
| 3GB6P244 | 44.0 | 22 | 24 | 2500 | 73.5 | 144 | 9.8 | ||
| 3GB6P252 | 52.0 | 20 | 22 | 2500 | 76.0 | 149 | 10.4 | ||
| 3GB6P260 | 60.0 | 18 | 20 | 2500 | 79.0 | 155 | 10.9 | "P3" PT 1-1/2" |
PT 1" |
| 3GB6P270 | 40.0 | 16 | 18 | 2500 | 82.5 | 162 | 11.3 | ||
| 3GB6P280 | 80.0 | 15 | 17 | 2300 | 85.0 | 167 | 11.9 | ||
| 3GB6P290 | 90.0 | 14 | 16 | 2000 | 88.0 | 173 | 12.4 | ||
| 3GB7P223 | 23.0 | 25 | 27 | 3000 | 65.5 | 128 | 8.2 | "P1" PT 1" |
PT 3/4" |
| 3GB7P225 | 25.0 | 66.5 | 130 | 8.3 | |||||
| 3GB7P228 | 28.0 | 67.5 | 132 | 8.4 | |||||
| 3GB7P233 | 33.0 | 69.5 | 136 | 8.6 | |||||
| 3GB7P238 | 38.0 | 71.5 | 140 | 9.0 | "P2" PT 1-1/4" |
||||
| 3GB7P244 | 44.0 | 22 | 24 | 2500 | 73.5 | 144 | 9.8 | ||
| 3GB7P252 | 52.0 | 20 | 22 | 2500 | 76.0 | 149 | 10.4 | ||
| 3GB7P260 | 60.0 | 18 | 20 | 2500 | 79.0 | 155 | 10.9 | "P3" PT 1-1/2" |
PT 1" |
| 3GB7P270 | 40.0 | 16 | 18 | 2500 | 82.5 | 162 | 11.3 | ||
| 3GB7P280 | 80.0 | 15 | 17 | 2300 | 85.0 | 167 | 11.9 | ||
| 3GB7P290 | 90.0 | 14 | 16 | 2000 | 88.0 | 173 | 12.4 | ||
